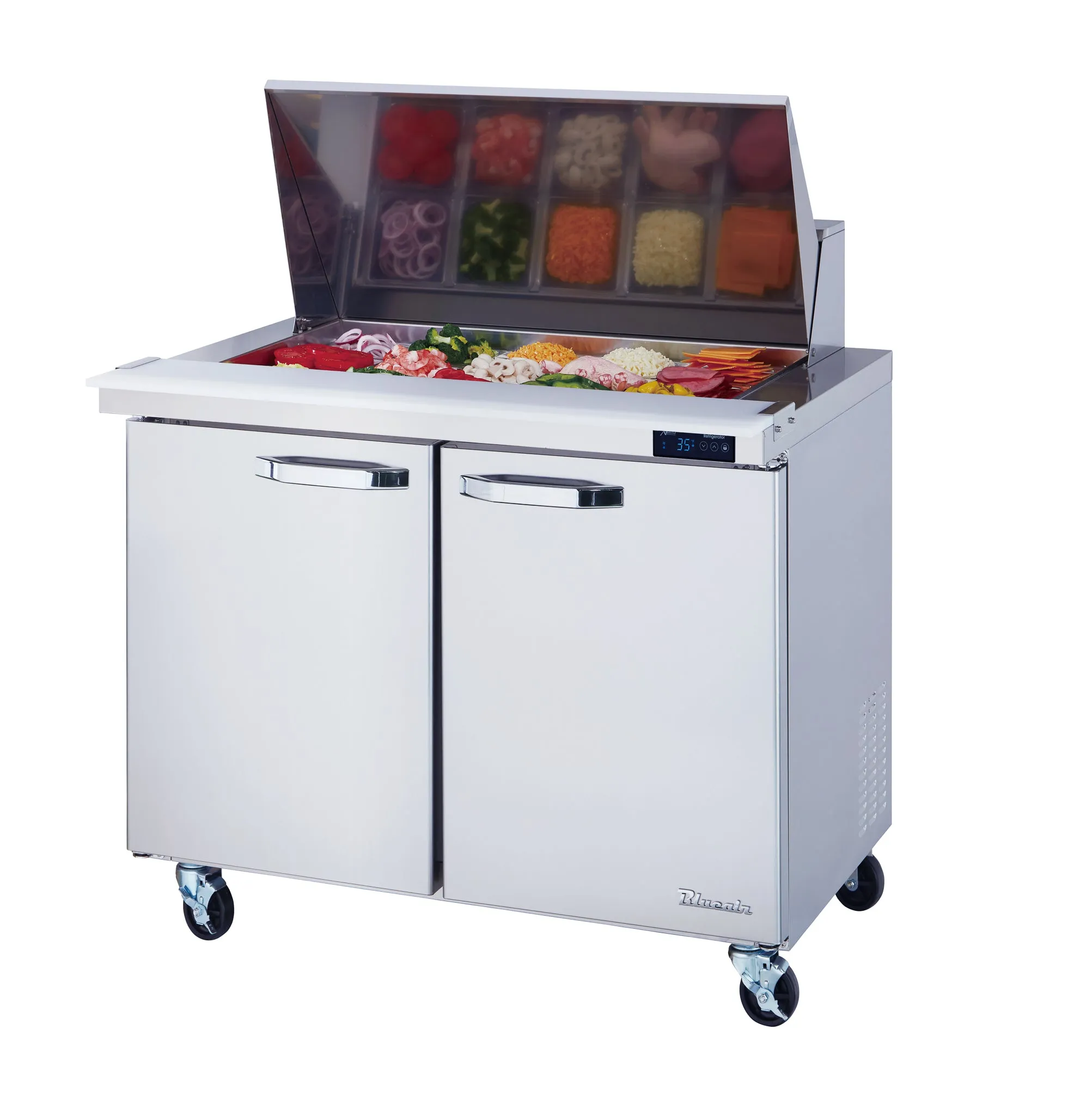

Standard Features
Cabinet Construction
- Stainless steel cabinet construction
- Stainless steel interior and exterior (galvanized steel back & bottom).
- Cyclopentane Insulation ?C Contains no hydro-fluorocarbons (HFCs) and is environmentally friendly
- Drop-in section:
- Fans force cold air into this enclosed area keeping stored food items consistently cold
- Insulated pan cover with a stainless steel divider which prevents food spillage into the storage area beneath
- Standard 1/6 / 4?? food pans are provided. Unit accommodates 6" deep pans
- Epoxy coated wire shelves with adjustable shelving height.
- Side rail cutting board bracket with 9 ??? deep, 1/2?? thick cutting board included
- Four (4) 4?? diameter swivel casters with front brakes standard.
?
Refrigeration
- Hydrocarbon refrigerants (R-290) ?C increases energy efficiency by up to 25% compared to using HFC refrigerants.?It is safer for the environment and does not cause ozone depletion.
- Self-contained system, rear mounted compressor.
- Electrodeposition coated evaporator increases performance by maintaining the heat transfer rates over the life of the evaporator and reducing potential corrosion.
- Innovative hot gas frame heating system reduces condensation and increases energy efficiency.
- Refrigerators have a temperature range between 33??F ~ 39??F
?
Doors
- Self closing doors
- Durable door gasket with easy replacement.
- Lifetime guaranteed heavy duty all metal door handles. (Ni-Cr Plated)
?
Design
- Self-diagnostic digital temperature control & monitor system
- Digital display allows for easy monitoring
- Digital controls include automatic evaporator fan motor delay.
- Rounded corner design gives a stylish appearance and reduces chances of injury.
- Visual and audible door open alarm, alarm sounds when doors are not completely closed to protect against food spoilage
?
Standard
- NSF/ANSI Standard 7 compliant
Connection
- 9 ft long flexible three wire cord with molded plug
?
Optional Features & Accessories
- 2.5" diameter casters available
- 6" adjustable feet available
- Additional shelves are available.
- Drawer models available
- 6?? pans available
Warranty
5 Years Parts & Labor
7 Years Compressor
Product Specification
Capacity | 9.5 cu. ft. |
Exterior Dimensions ( L x D x H ) | 36 3/8 x 37 9/32 x 44 1/4 inch |
Net Weight | 190 lb |
Door | 2 |
Shelves | 2 |
Compressor | 1/4 HP |
Refrigerant | R-290 |
Temperature Range | 33?H ~ 39?H |
Input (Voltage / Hz / Phase) | 115V / 60Hz / 1Ph |
Amps | 4.1 |
Pans | 1/6x15 |
Certification Safety | ETL |
Certification Sanitation | ETL |
