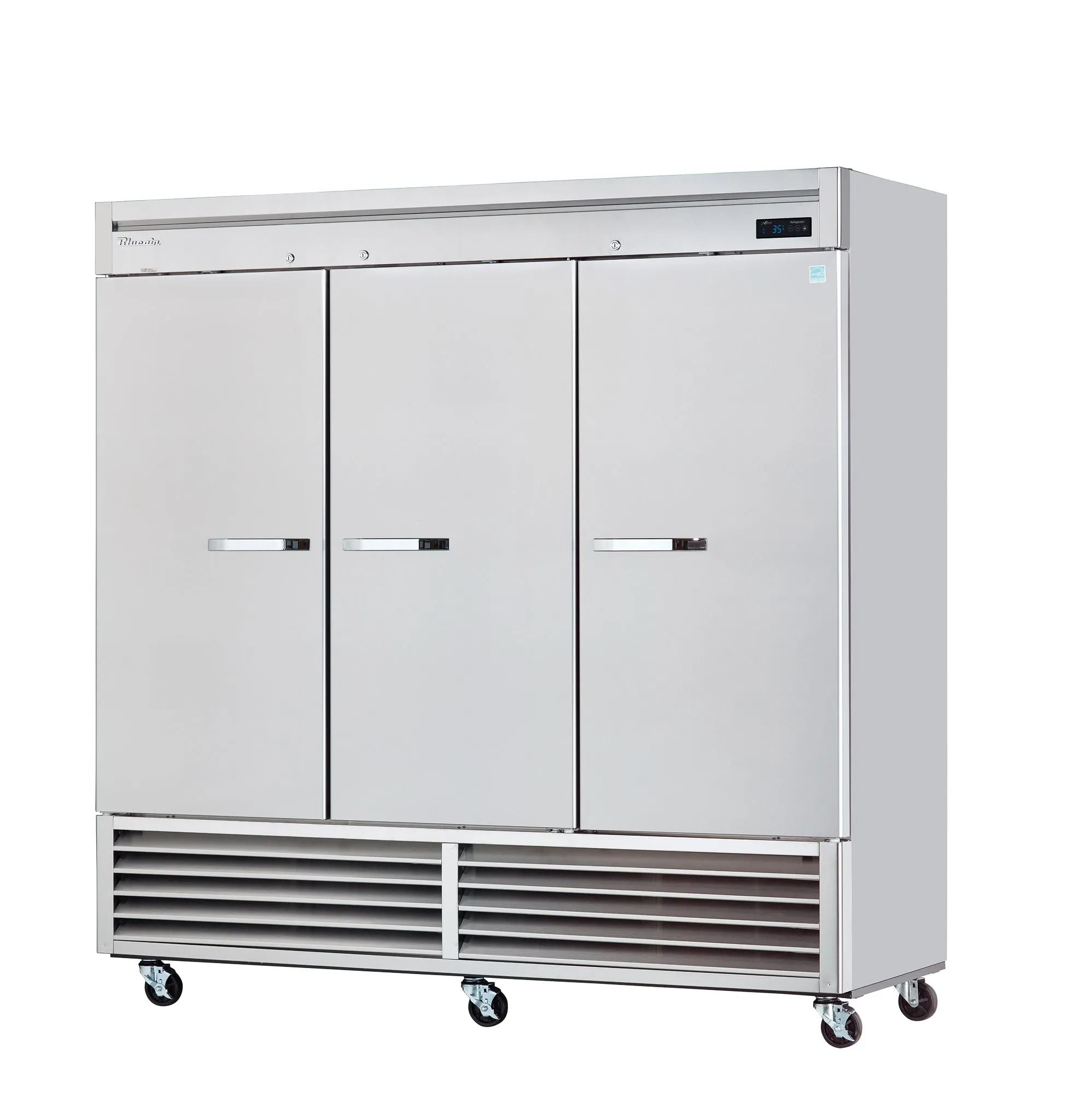

Standard Features
Cabinet Construction
- Stainless steel cabinet construction
- Stainless steel interior and exterior (galvanized steel back & bottom).
- Cyclopentane Insulation ?C Contains no hydro-fluorocarbons (HFCs) and is environmentally friendly.
- Epoxy coated wire shelves with adjustable shelving height.
- 4 shelves per compartment
- Four (4) 4?? Diameter swivel casters with front brakes standard. Six (6) casters on three-door models of which two (2) have front brakes.
- Designed to accept full size roll-in racks for bun sheet pan (18??L x 26??D)
?
Refrigeration
- Hydrocarbon refrigerants (R-290) ?C increases energy efficiency by up to 25% compared to using HFC refrigerants.?It is safer for the environment and does not cause ozone depletion.
- Front sliding refrigeration unit allows unit to be serviced without being moved.
- Self-contained system, bottom mounted compressor provides quick and easy maintenance
- Electrodeposition coated evaporator increases performance by maintaining the heat transfer rates over the life of the evaporator and reducing potential corrosion.
- Air guard on rear wall ensures proper air circulation and cooling.
- Innovative hot gas frame heating system reduces condensation and increases energy efficiency.
- Refrigerators have a temperature range between 33??F ~ 39??F
- Standard Fabric condensation
?
Doors
- Self closing doors (doors close at 90?? or less)
- Automatic hold open door feature at 110??
- Durable door gasket with easy replacement.
- Lifetime guaranteed heavy duty all metal door handles. (Ni-Cr Plated)
- Door designed to open easily.
- Doors built with pressure relievers to eliminate vacuum pressure and allow easy door opening.
- Standard door locks
?
Design & Features
- Self-diagnostic digital temperature control & monitor system
- Digital display allows for easy monitoring
- Digital controls include automatic evaporator fan motor delay.
- Rounded corner design gives a stylish appearance and reduces chances of injury.
- Visual and audible door open alarm, alarm sounds when doors are not completely closed to protect against food spoilage
?
Lighting
- LED Interior lighting.
?
Standard
- NSF/ANSI Standard 7 compliant
?
Connection
- 9 ft long flexible three wire cord with molded plug
?
Optional Features & Accessories
- 2.5" diameter casters available
- 6" adjustable feet available
- Left hinged door available for single door models
- Additional shelves are available.
Warranty
5 Years Parts & Labor
7 Years Compressor
Product Specification
| Capacity | 72 |
| Exterior Dimensions ( L x D x H ) | 81 x 32 3/8 x 82 3/8 inch |
| Net Weight | 615 lbs |
| Door | 3 |
| Shelves | 12 |
| Compressor | 1/2 HP |
| Refrigerant | R-290 |
| Temperature Range | 33?H ~ 39?H |
| Input (Voltage / Hz / Phase) | AC 115V / 60Hz / 1 |
| Amps | 5.5 |
| Energy Consumption | 2.94 (kWh/day) |
| Certification Energy Efficiency | Energy Star |
